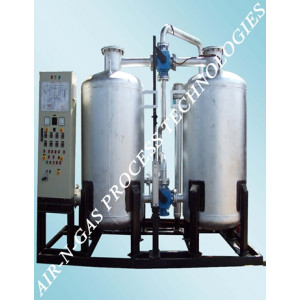

Low Pressure Dryer Details

Offering low pressure air dryer, low pressure nitrogen dryer, fully automatic and computerized air handling unit for use in synthetic fibre, chemical process, air curtains and other industrial applications.

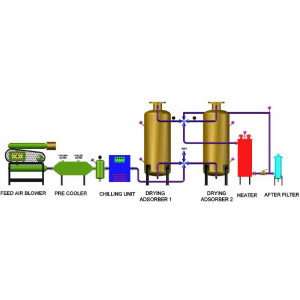

As the name suggests low pressure air dryer works on the principle of low pressure. Due to this blower is used as inlet air is passed through blower and outlet air is 0.1-0.2 kg/cm2g and 70-80?c. After that air will pass through a combination cooler (Chilled & Cooled water) where the temperature of air is reduced and moisture is condensed through auto drain valve. Both the tower is filled with desiccants (Molecular sieve & Activated Alumina). Now air will pass through tower A for process where moisture is absorbed and  air will come out  through after filter with dew point of (-) 60?c. At this time tower B is in regeneration cycle. For this 30-40% purge hot air @ 200?c is taken from outlet line for the regeneration of desiccants. After that tower is fully regenerated and heater is switched off automatically by PLC. Both the towers works automatically through PLC.

Related Products

REFRIGERATED AIR DRYER

The simplest way of removing moisture from compressed air is to reduce the temperature. In this dryer compressed air is ... Continue

Heatless Air Dryer

This is the simplest of all desiccant based air dryers. In this dryer, two desiccant towers are used. While one tower is... Continue

Internally Heated Dryer

This is an improvised version of the heatless dryer where purge air loss is very very low due to regeneration is achieve... Continue

Heat Of Compression (HOC) Dryer

Heat of Compression type air dryer is a breakthrough in drying technology. The hot air from the Compressor at 140°C ... Continue

Split Flow No Purge Loss Dryer

To save on purge loss, here part of wet air is circulated through a heater thereby increasing its moisture carrying capa... Continue

Blower Regenerated Dryer

In this dryer, the regeneration air is supplied from a blower which is heated in a heating chamber and thus increasing i... Continue
